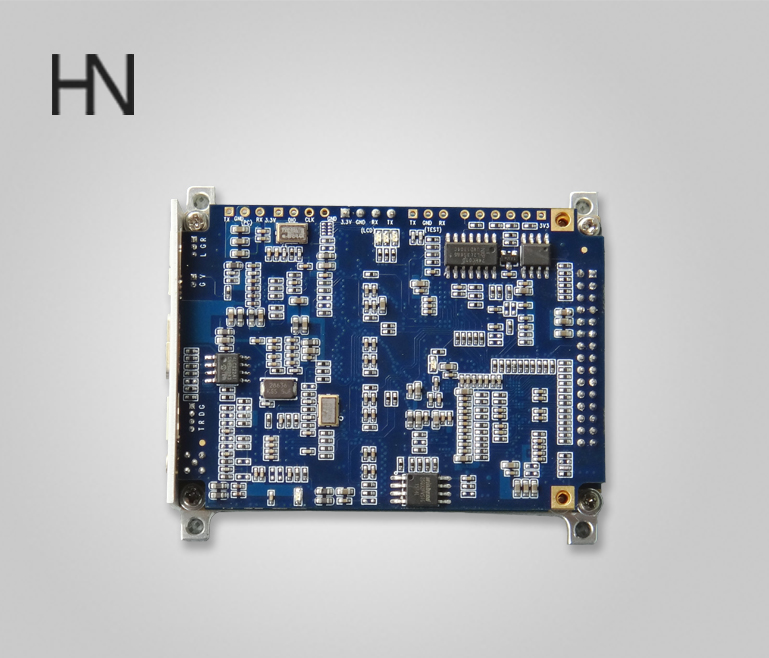

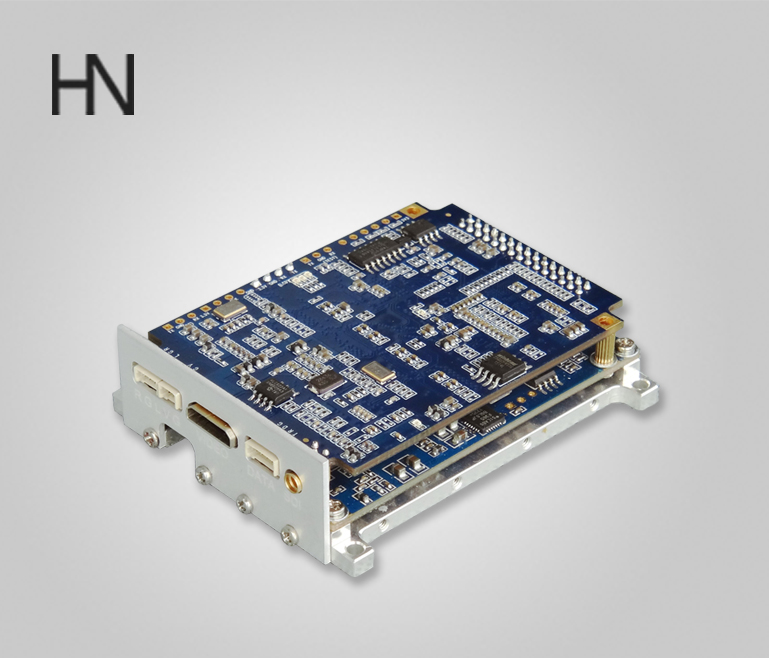

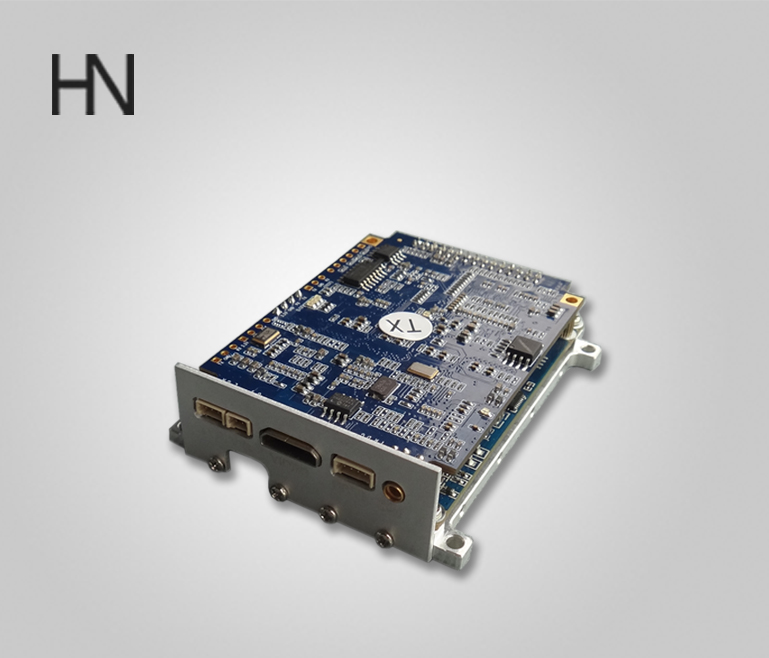

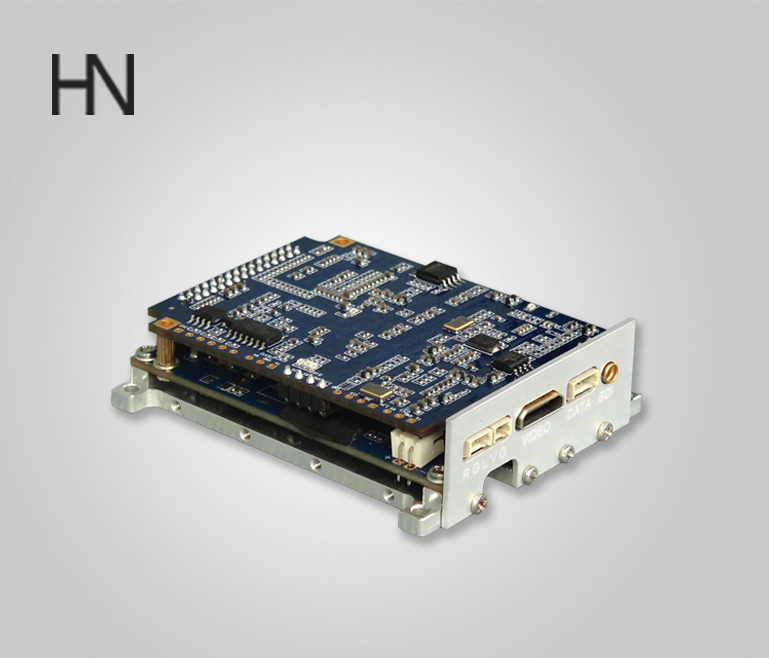

SK-530 (70mm*50mm) H.264 FHD COFDM transmitter module and SK-620(120mm*65mm)receiver module are belongs to industrial-grade miniaturization full high-definition wireless video transmission module,which support full-functional interface (SDI, HDMI, CVBS ), low latency (200ms) end to end transmission, using military-grade 128-bit dynamic non-standard AES encryption, and transparent serial data transmission can easily loading GPS data, sensor data collection, small size and low power consumption.
Technical parameters:
|
Model |
SK-530 |
|
DC input range |
DC 6~17V |
|
Working current |
400mA_12V |
|
Video input |
SDI:Support 1080P,720P,576,480,with audio de-embedding function |
|
HDMI:Support HD1080P,720P,576,480 |
|
|
CVBS:external SD analog video signal |
|
|
Radio Frequency |
180MHz～2700MHz,Stepping 1MHz （other frequencies on request） |
|
Bandwidth |
2/2.5/4/8MHz |
|
Output Power |
-20dbm~0dbm,Step 1 dBm (adjustable,can customized） |
|
Encryption |
AES 128（dynamically encryption key） |
|
Modulation |
COFDM 2K |
|
Constellation |
QPSK,16 QAM,64 QAM |
|
FEC |
1/2,2/3,3/4,7/8 |
|
Guard Interval |
1/32,1/16,1/8,1/4 |
|
Video compression type |
H.264 |
|
Parameter control mode |
Through LCD display panel to set the relevant parameters |
|
RF interface |
IPEX jack |
|
Dimensions |
50mm*70mm |
