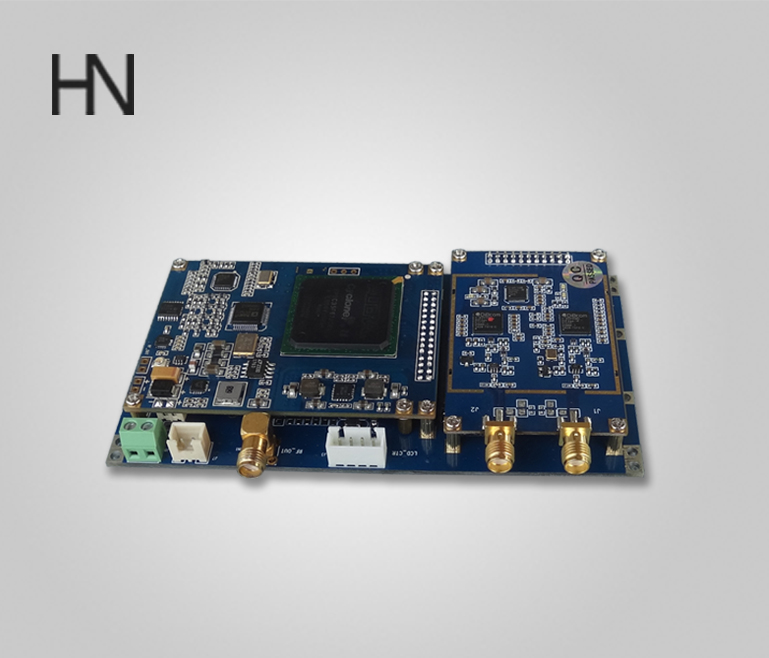

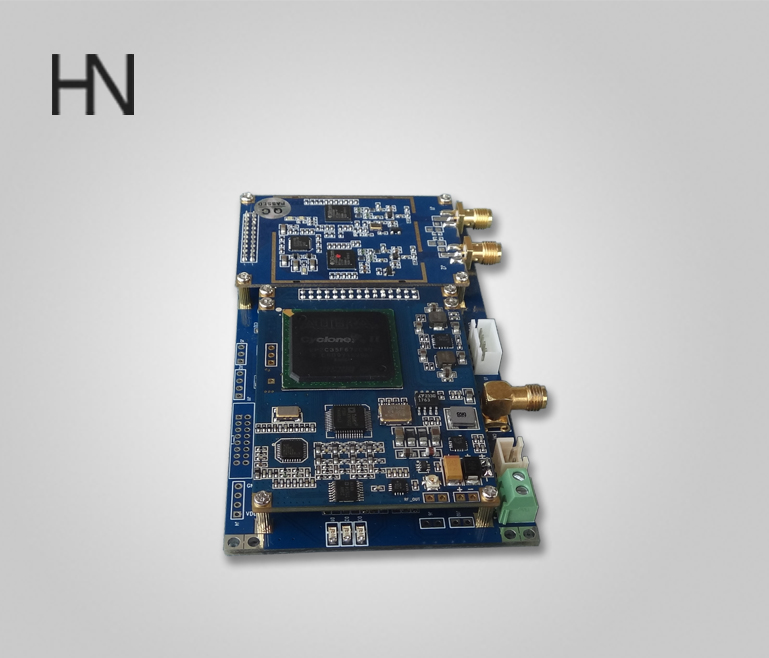

SK-265-SK-265 repeater PCB board-site

H.264 Cofdm relay module

SK-265 H.264 HD1080P COFDM HD modem relay module, small volume and low power consumption, realize the receiving and transmitting the relay function of the multi carrier frequency domain equalization, completely lossless signal quality, support COFDM HD HD1080P modulation mode H.264 or MPEG2 compression of data transmission, to provide high-definition digital broadcasting, public security, security system, application police, fire-fighting and other fields
Using third generation COFDM multi carrier modulation technique and MPEG-2 video coding technique
Realization of ultra clear image and digital stereo uncompressed transmission
Supporting dual antenna diversity reception
Support transmission encryption
Provide high brightness LCD display control panel

Technical characteristics:

Model	SK-265
Voltage	DC6-15V
Current	380mA
TX Output parameter	Output power:-31dBm～0dBm adjustable,Stepping 1dBm
	Output frequency:300MHz～860MHz,Stepping 1MHz (other frequency can be customized)
	Bandwidth:2/2.5/4/8MHz
	Encryption: ON/OFF
RX Receiving parameter	Receiving frequency:300MHz～860MHz ,Stepping 1MHz
	Receiving sensitivity:-103dB/2MHz
	Bandwidth:2/2.5/4/8MHz
	Decryption: ON/OFF
Modulation/Demodulation	COFDM/DVB-T,1/2,1/32
Input and output stream format	COFDM/DVB MPEG2-TS
TX/RX interface	SMA
Parameter control method	Through the LCD control panel to set the relevant parameters
Dimensions	120mm65mm10mm
