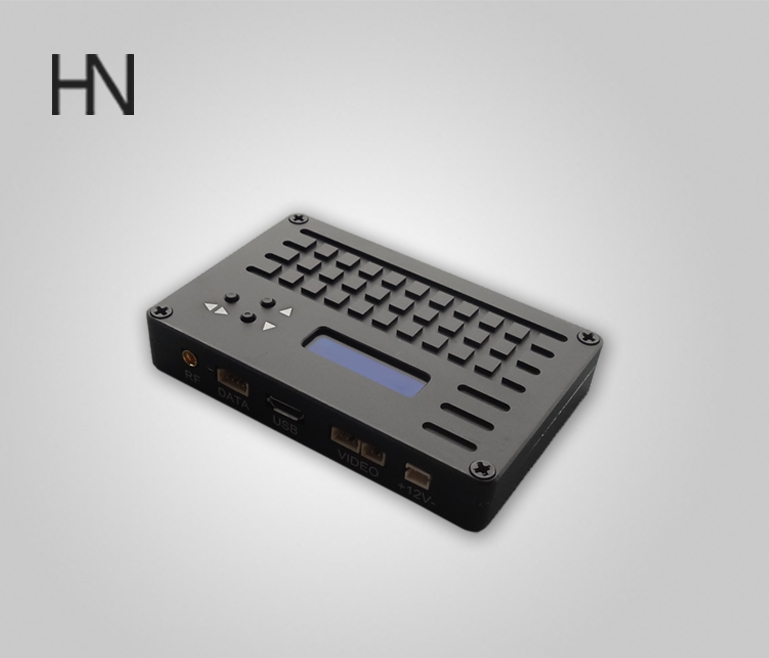

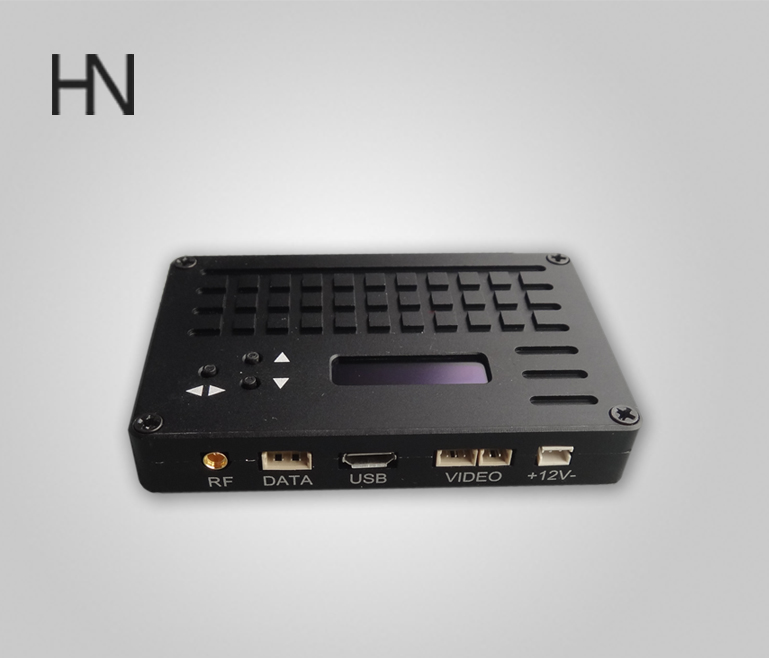

HN-512AV H.264 COFDM wireless video transmission equipment.Using high efficiency and innovative H.264 compression encoding,
integrated molding design,integrating digital modulation,audio and video compression,highly integrated high-definition movement,
non line-of-sight digital image transmission equipment,small size, light weight, can be in a building block environment or high speed
mobile transmission high-quality video and audio.
This product is widely used in high quality and high standard requirements of aerial photography, covert detection,
video surveillance,wireless video transmission in real time and other fields.
●Using COFDM modulation technology,H.264 image encoding technology
●Support 128 bit dynamic AES encryption
●Highly integrated combination of modular design
●The fin-type aluminum chassis, small size, light weight, easy to carry
●Support non line of sight (NLOS), high-speed mobile transmission
|
Model |
HN-512AV |
|
Working voltage |
DC 6~12V |
|
Working current |
420mA_12V |
|
Video input |
CVBS:480i/576i |
|
Channel bandwidth |
2/4/8MHz |
|
Working frequency |
300~1500MHZ,Stepping 1MHz (can customized other frequency) |
|
Output power |
0dBm (can cusomized) |
|
RF Antenna interface |
MMCX |
|
Encryption mode |
AES 128 |
|
FEC |
1/2,2/3,3/4,4/5,5/6,7/8 |
|
Guard interval |
1/32,1/16,1/8,1/4 |
|
Video encoding |
MPEG-2 |
|
Modulation |
COFDM |
|
Modulation mode |
QPSK,QAM16,QAM64 |
|
Parameter control mode |
Through external LCD display panel or pin setting related parameters |
|
Dimension |
73mm*48mm*12mm |
|
Weight |
54g |
