SK-320-SK-320 HD receiver module-site

H.264 diversity RX module

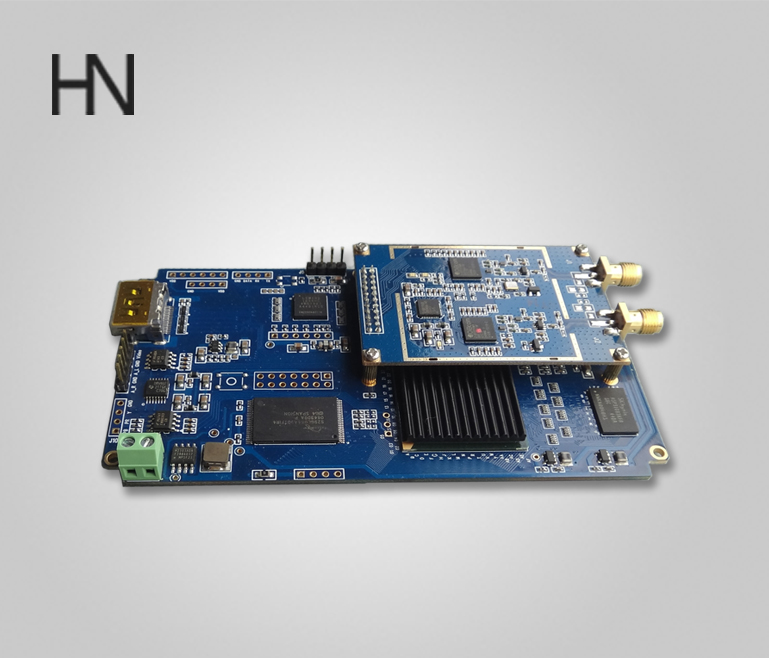

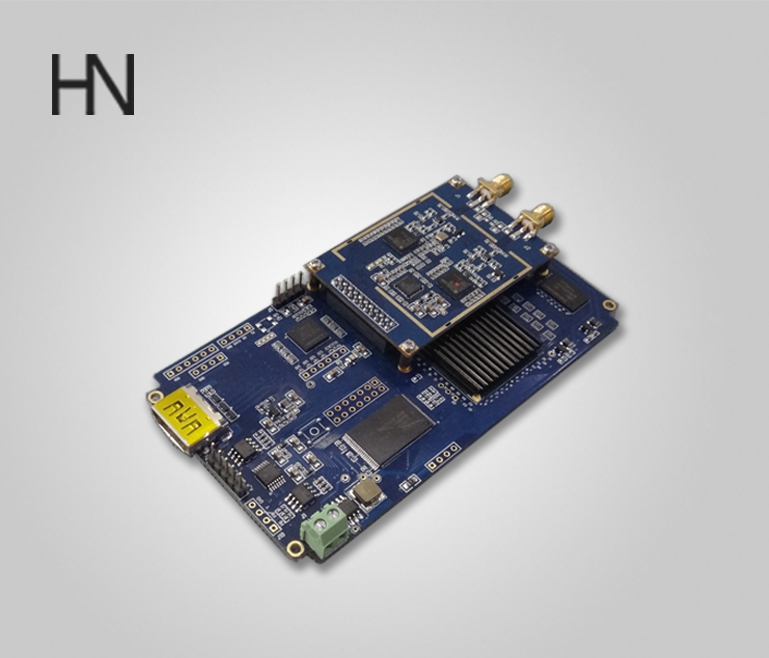

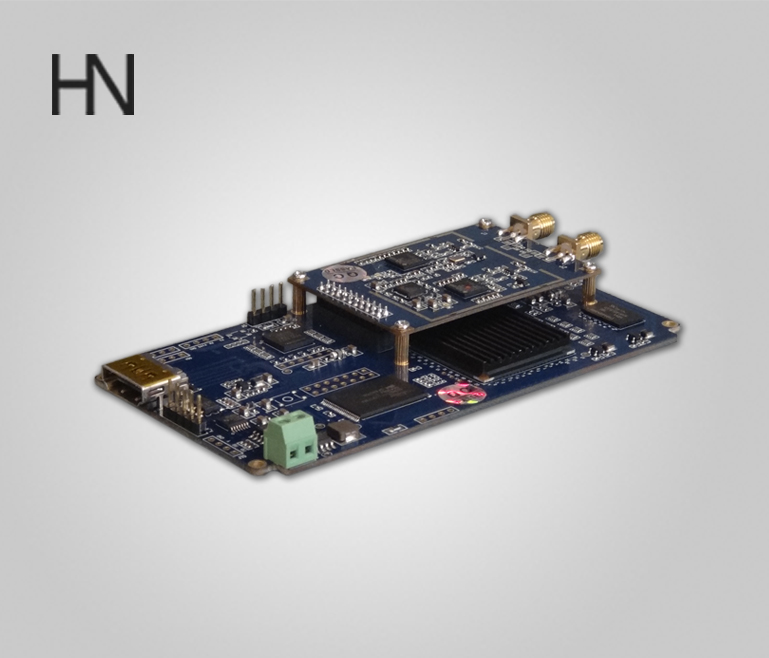

SK-320 HD H.264/MPEG2 COFDM Wireless video transmission receiver module.
Using advanced multi-carrier diversity reception technology.Support high-speed mobile and non-line of sight reception.
Simple and efficient to use control interface.It’s can simultaneously output multiple video including HD and SD video.
Widely used in security, fire fighting, radio and television, emergency communications and other industries in mobile non line of sight conditions to receive wireless signals, remote video transmission and monitoring.
●Support COFDM model H.264/MPEG2 full-featured video decoding

●Support military level non-standard 128 bit AES decryption

●Support NLOS,High-speed mobile transmission

●Digital operation panel and display,easy to use

●Support dual antenna multi-carrier diversity reception

Technical parameters

Model	SK-320
Voltage	DC 6~15V
Current	330mA_12V
Power consumption	4W
Level of sensitivity	-104dBm/2MHz
Video output	CVBS:Analog video output
Video output	HDMI:HD digital video output
Bandwidth	2/2.5/4/8MHz
Radio frequency	300～860MHz,stepping 1MHz
Decryption	128bit AES
Decoding	MPEG2/H.264
Demodulation	COFDM
RF input	SMA,high performance dual channel diversity reception
Parameter control mode	Through the LCD display panel to set the related parameters
Module size	120mm65mm10mm
Bolt hole spacing	115mm*53mm
