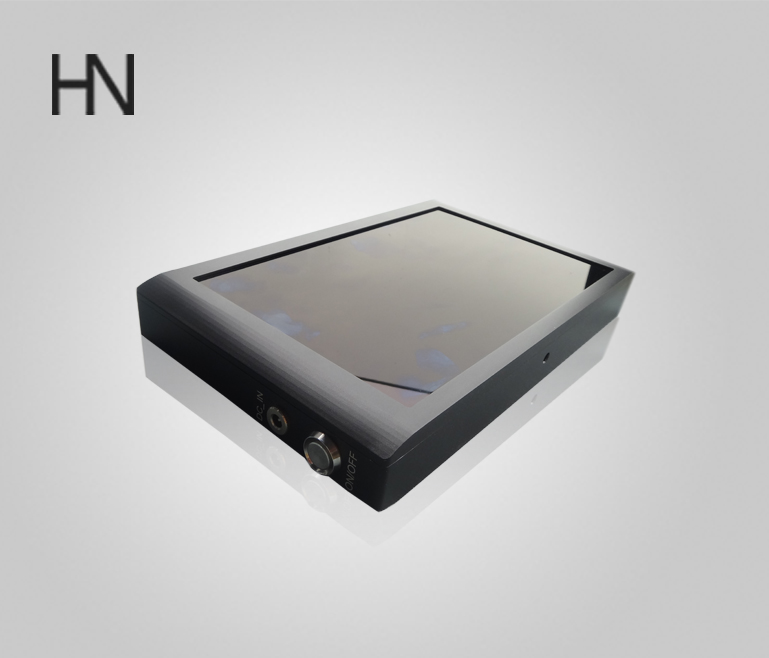

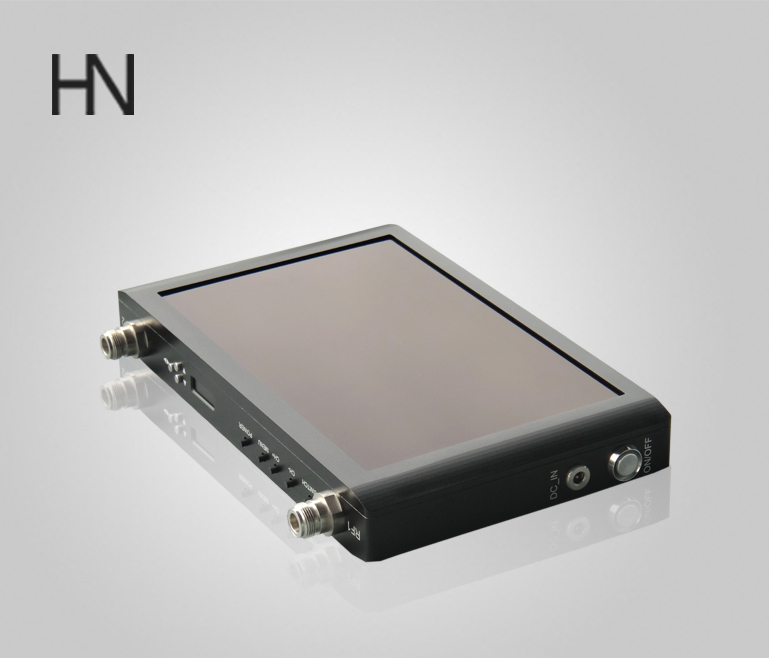

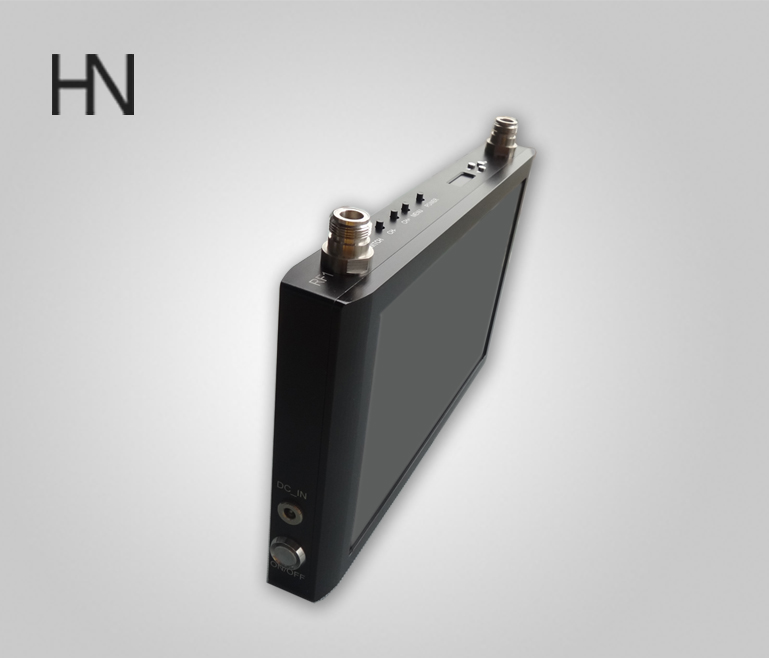

HN-430HD 10.1 inch full HD hand-held video Receiver,small size,light weight.The use of advanced multi-carrier diversity reception technology to support high-speed mobile and non-line sight reception.Use full HD 1920X1200 10.1 inch 16:10 color TFT-LCD to display,provide simple operation and perfect image,Which are widely used in security, fire fighting, radio and television,emergency communications, unmanned aerial vehicles and other fields.
●Support COFDM mode H.264/MPEG2 full-featured video decoding
●Provide 3.5mm standard audio video output interface
●USB interface to support image storage
●Supporting military level non standard 128 bit AES decryption
●Support dual antenna multi-carrier diversity reception
●10.1 inch High-definition 1920X1200 display screen
●Support NLOS,High-speed movement transmission
●Battery integrated design, small size, light weight and high reliability
Technical characteristics:
|
Model |
HN-430HD |
|
Voltage |
DC12V |
|
Built-in lithium battery, It can continuously work over 4 hours |
|
|
Receive sensitivity |
-104dBm/2MHz |
|
AV output |
Audio:3.5mm port,Analog audio output |
|
CVBS:3.5mm port,Analog video output |
|
|
Video display |
10.1 HD TFT LCD |
|
Pixel format |
1920X1200 |
|
Radio Frequency |
300-860MHz,stepping 1MHz |
|
Bandwidth |
2/2.5/4/8MHz |
|
Demodulation |
COFDM |
|
Decoding |
MPEG2/H.264 |
|
Decryption |
Dynamic 128 bit AES decryption |
|
Parameter control mode |
Through control panel to set the relevant parameters |
|
RF signal input port |
N-type(50Ω)high performance dual channel diversity reception |
|
Dimensions |
158mm*262mm*33mm |
|
Weight |
1500g |
