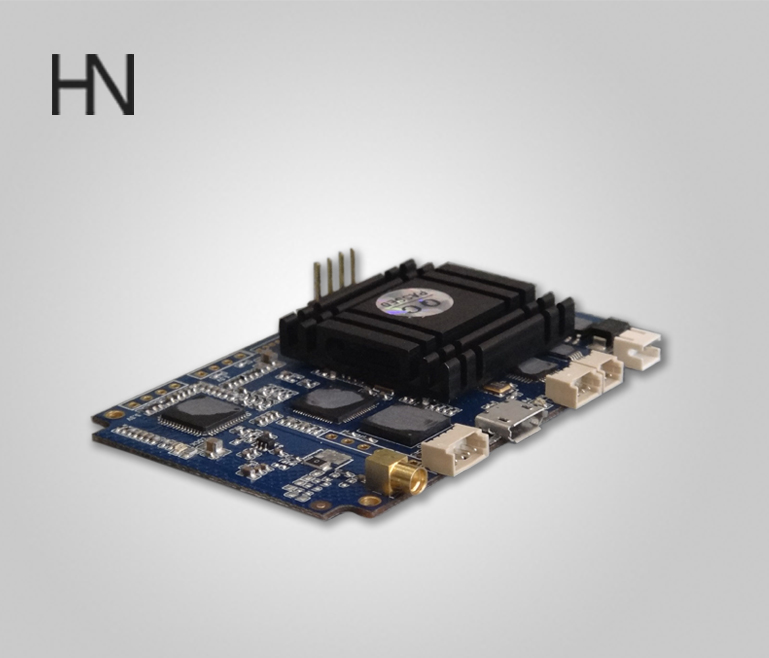

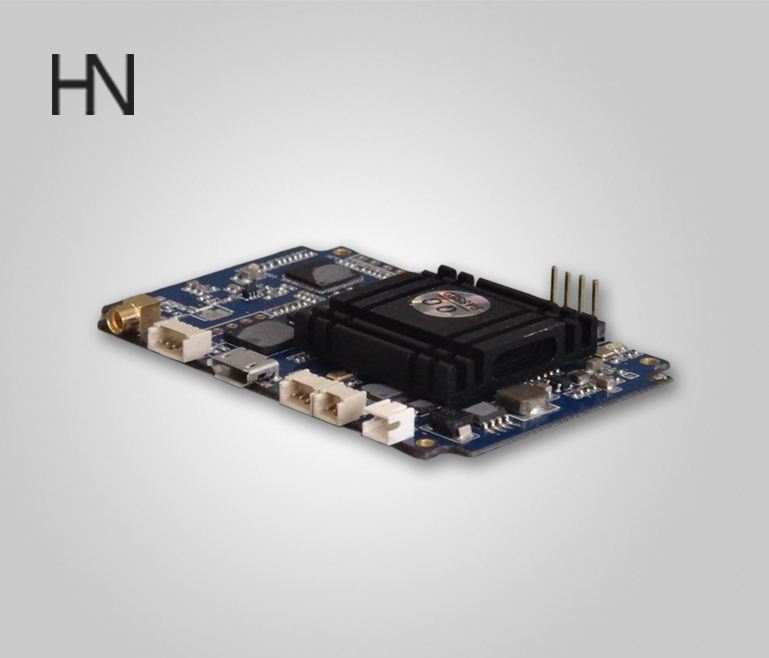

SK-512AV COFDM wireless video transmitter module,adopted advanced composite NTSC/PAL video pre-processing technology
and efficient video encoding algorithm, improve the encoding efficiency,reduce the encoding time delay,
The algorithm is optimized and the bit error rate is improved and the quality of the image is further improved.
The best image compression effect can be achieved at the lowest bit rate.
Using COFDM modulation technology
Support non-standard 128 bit AES encryption
Support digital panel operation and display, easy to use
Highly integrated modular design, small size, stable performance
Technical characteristics:
|
Model |
SK-512AV |
|
Voltage |
DC 6~15V |
|
Current |
420mA-12V |
|
Video input |
CVBS |
|
Audio Channel |
2 channel |
|
Bandwidth |
2/4/8MHz |
|
Radio Frequency |
300MH~860MHz stepping in 1MHz（other frequencies on request） |
|
RF Output Power |
0dBm（can be customized） |
|
RF interface |
SMA |
|
Encryption |
dynamic 128 bit AES encryption |
|
FEC |
1/2,2/3,3/4,5/6,7/8 |
|
Guard Interval |
1/32,1/16,1/8,1/4 |
|
Carriers |
2K |
|
Encoding |
H.264 |
|
Modulation |
COFDM |
|
Constellation |
QPSK,QAM16,QAM64 |
|
Parameter control mode |
Through OLED display panel to setting the relevant parameters |
|
Dimensions |
70mm*45mm |
|
Bolt hole spacing |
58mm*41mm |
