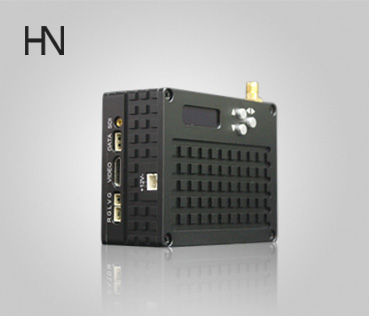

HN-530 is our company's latest micro long-distance high-definition wireless video transmission equipment, using COFDM multicarrier modulation technology, high efficiency and innovative H.264 compression encoding scheme, the coding efficiency, reduced coding delay, algorithm optimization, anti-error rate and further improve the image quality of a fruitful refined and improved, at the lowest rate to achieve the best image compression. Broadcasting standard embedded module design based on the use of advanced video pre-processing technology and efficient video coding algorithm to provide high-quality, low-rate broadcast audio and video signals to high-definition digital television broadcasting systems, mobile TV system, IPTV systems, thereby easily manage network expansion problems, greatly enhance the utilization of the available bandwidth, effectively save transmission costs for operators
● Using COFDM modulation technology,low latency with H.264 image encoding technology
● Support composite video NTSC/PAL video input
● Multi-functional Interface (SDI, HDMI, CVBS)
● Multiple video formats full HD1080_30p / 50p / 60p / 50i / 60i, HD720_50p / 60p, SD480i / 576i,provide good compatibility
● Support non line of sight (NLOS), high-speed mobile transmission
● Highly integrated combination of modular design
● Small volume, light weight, easy to carry, using air-cooling fin aluminum shell
● High power output (0.5W-1W), support for long range transmission
|
Model |
HN-530 |
|
DC input range |
DC 6~12V（Reverse Polarity Protected） |
|
Current |
1.0A_12V/12W（CVBS） |
|
1.0A_12V/12W（SDI） |
|
|
1.2A_12V/15W（HDMI） |
|
|
Video Input |
CVBS:NTSC 640×480 |
|
PAL 720×576 |
|
|
SDI:Support up to 1080i/30 |
|
|
Mini HDMI:Support HD1080P,720P, |
|
|
Audio input |
Microphone/cable(option) |
|
Audio Channel |
2 channels |
|
Audio encoder |
ISO/IEC13818-3（MPEG-1） |
|
Bandwidth |
2.0/2.5/4.0/8.0MHz |
|
Radio Frequency |
300MH~2700MHz,stepping 1MHz（other frequencies on request） |
|
Output Power |
26dBm~30dBm/400mW~1.0W(can customized） |
|
RF interface |
SMA |
|
Encryption |
AES 128 |
|
FEC |
1/2,2/3,3/4,5/6,7/8 |
|
Guard Interval |
1/32,1/16,1/8,1/4 |
|
Carriers |
2K |
|
Video encoding |
H.264,MPEG-2 |
|
Modulation |
COFDM |
|
Constellation |
QPSK,16QAM,64QAM |
|
Parameter control mode |
Through OLED display panel to set the relevant parameters |
|
Dimensions |
78mm*60mm*31mm |
|
Weight |
199g |
|
Operating temperature |
-20℃~70℃ |
|
HN-530 accessories |
2P/2.0 Power cord,2P/1.25 Analog video cable,3P/1.25 Audio cable. |
