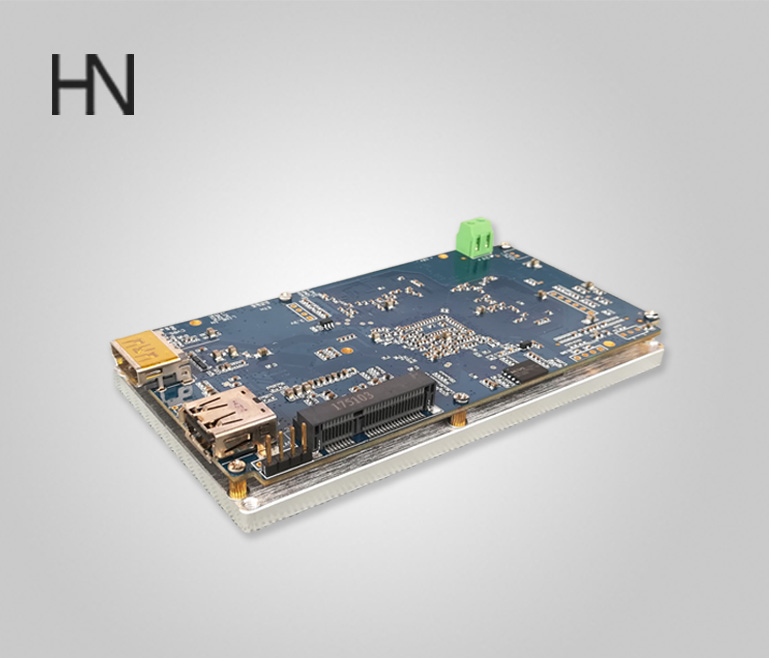

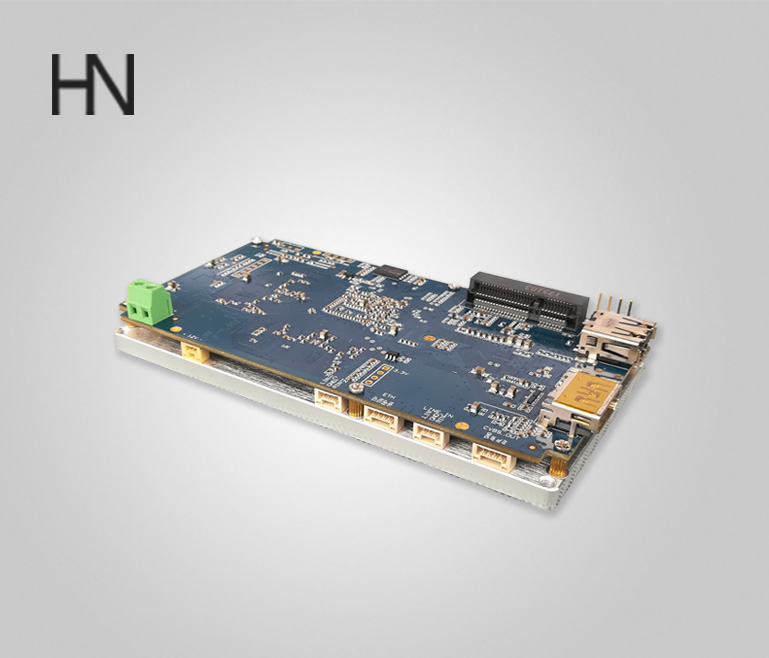

SK-840DEC HD H.265/H.264 IP COFDM Rx HD decoding module, this product has HDMI output interface, CVBS analog audio and video output interface,SDI interface（need to be customized),USB interface, Ethernet interface. The use of non-line-of-sight (NLOS) transmission COFDM multi-carrier demodulation technology, the use of transparent data interface to provide balanced and stable high-speed rate, support UDP (unicast and multicast) protocol. Receive TS stream from the encoder, can set video output resolution according to different needs, highly integrated embedded design.
H.265 high-efficiency full HD 1080p decoding compression
Support H.264/H.265 full-featured image decoding in COFDM mode
Support for USB image recording
Support CVBS,HDMIoutput,SDI output is option.
Digital panel operation and display, easy to use
|
Model |
SK-840DEC |
|
DC input range |
DC 6~17V |
|
Current |
700mA_12V@8.5Watt |
|
Video output |
HDMI:HD digital video output |
|
|
CVBS:SD analog video output |
|
Reverse audio input |
2 channels |
|
Audio output |
2 Channels |
|
RJ_45 |
1*RJ_45 |
|
TS flow protocol |
Supports UDP (unicast/multicast) protocols |
|
USB interface |
Video recording |
|
Video decoding |
H.264/H.265 |
|
Demodulation |
COFDM |
|
Parameter control method |
Set related parameters through LCD panel |
|
Dimension |
120*65*27mm |
|
Weight |
132g |
