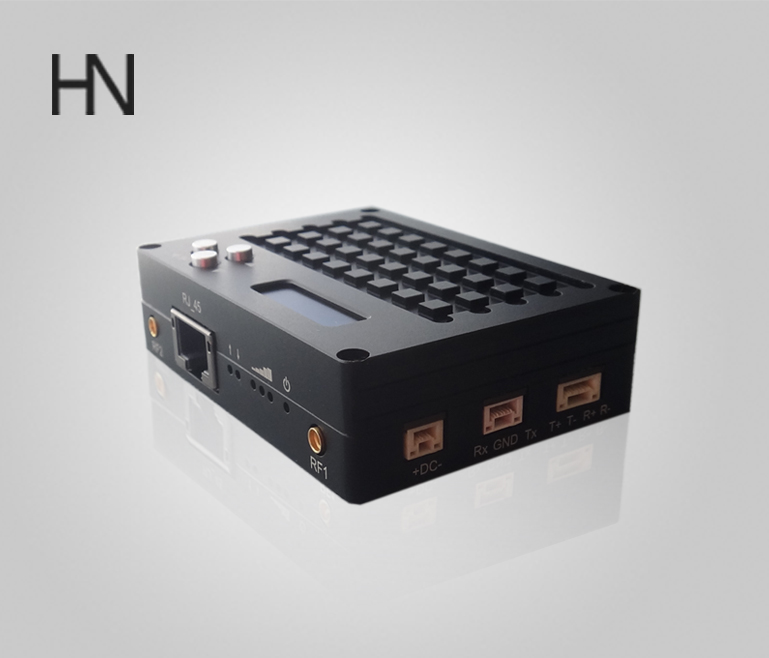

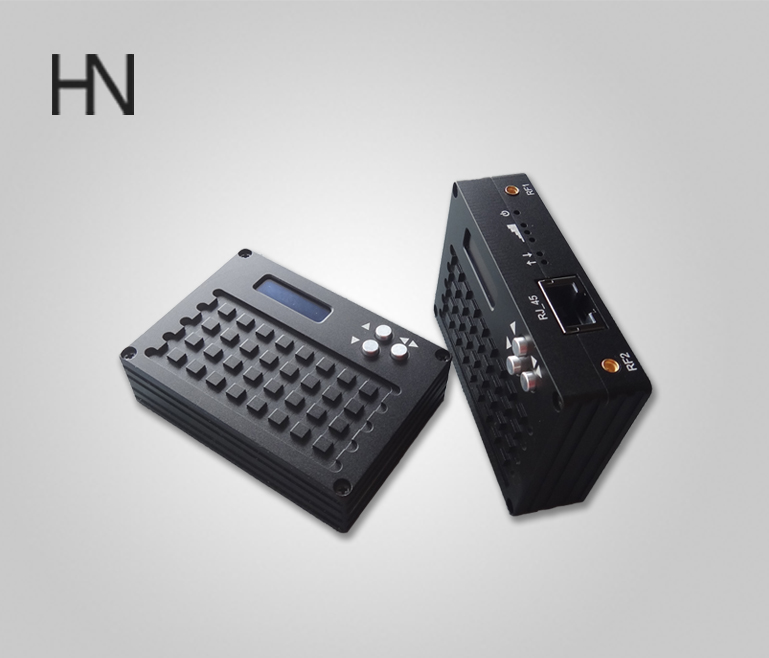

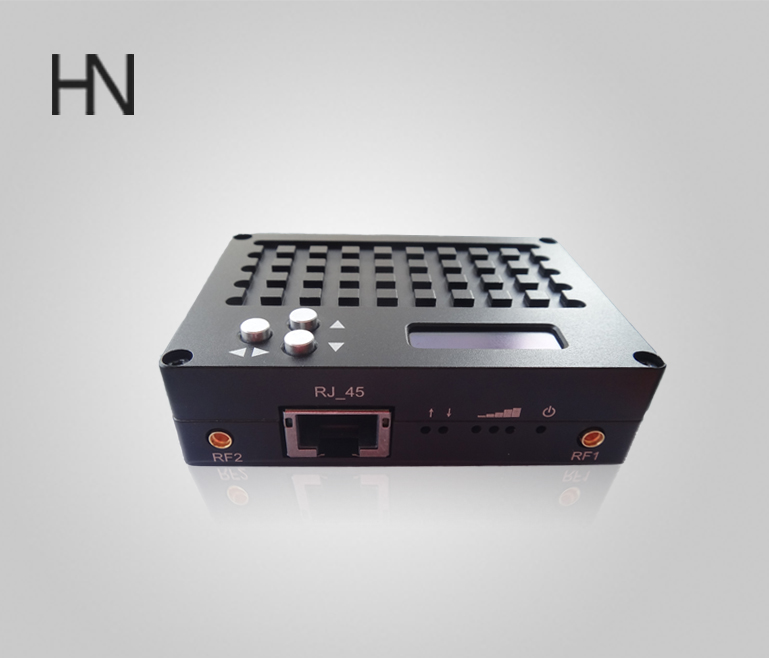

HN-542 TDD_COFDM this product is our company released latest mini type pure digital wireless transmission equipment,
the use of advanced time division processing technology and leading COFDM modulation technology,
providing a complete two-way data transmission channel,high-definition video transmission channel,
the perfect realization of real-time,high-speed mobile data, audio and video transmission.
Support for up to 20Mbps data flow, adaptive dynamic stream allocation technology
Support multiple bandwidth regulation (2M/4M/8M), adaptive modulation and manual modulation mode selection
Technical parameters:
|
Model |
HN-542 |
|
Power input |
DC 7~17V |
|
Ethernet |
10/100 BaseT、Auto-MDI/X、IEEE 802.3 |
|
TCP,UDP,TCP/IP,ARP,ICMP,DHCP,HTTP,SNMP,FT P,DNS |
|
|
Data input |
RS-232&RS-485-H/RS-485-F |
|
RJ45 |
|
|
Output frequency |
2402MHz-2482MHz,Step 1MHz adjustable |
|
Output power |
30dBm/1W |
|
Bandwidth |
2.0 MHz /4.0MHz/8.0MHz |
|
Encryption |
128 bit AES (can customized 256 bit AES) |
|
Correction mechanism |
32 bit of CRC,ARQ |
|
Modulation |
TDD-COFDM,Time division duplex mode |
|
RF Antenna interface |
MMCX |
|
Parameter control |
By adjusting the parameters of OLED control |
|

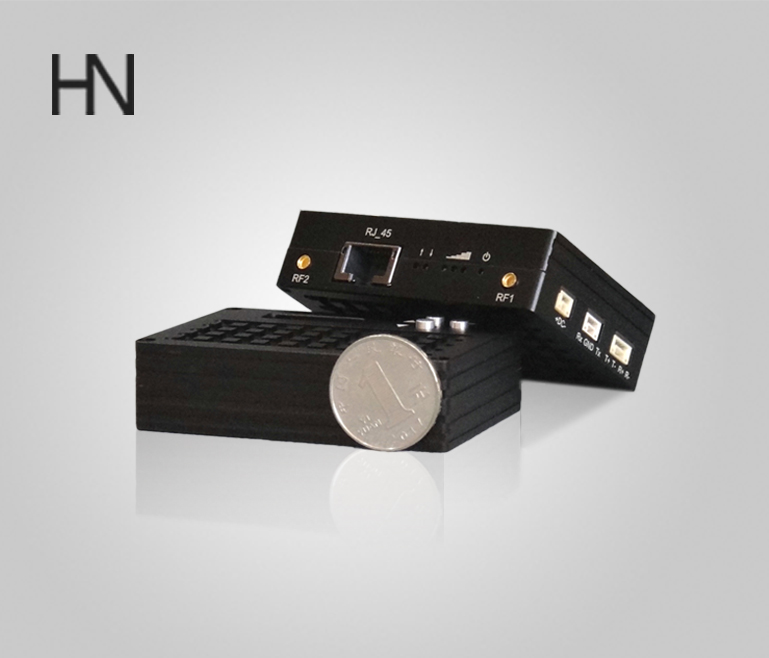

Dimensions |
74m*52mm*20mm |
|
Weight |
90g |
